GEORIM ENGINEERING- AUTHORIZED SALES & SERVICE AGENT
*MEPC 285(70)* AMENDMENTS TO THE REVISED GUIDELINES AND SPECIFICATIONS FOR RESOLUTION MEPC.107(49)
AUTHORIZED SERVICE AGENCY FOR
- Calibration, inspection, maintenance for the Georim Engg Korea 15ppm Bilge Alarm Monitor Model : GBA-155
- 15PPM Bilge Separator (Oily Bilge Separator)
- 15PPM Bilge Alarm (Oil Content Meter)
- Coalescer filters
- Bilge Pump (Piston Type)
- Sludge Pump (Single Screw Type)

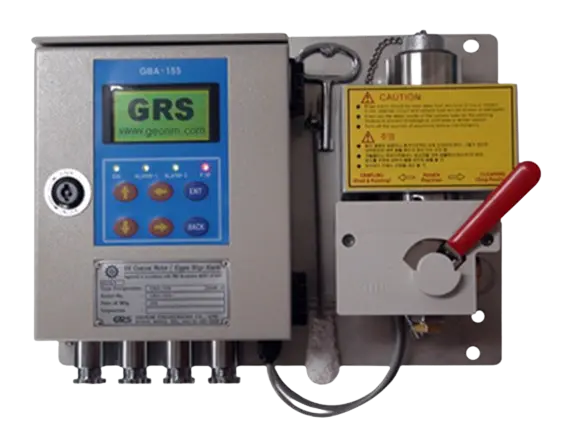

15ppm Bilge Alarm (GBA-155)
GBA-155 Complying to IMO MEPC 107(49) GBA-155 serves to continuously measure the concentration of oil in bilge and other waste water produced on a ship and produces alarm signal when oil concentration is 5 or 15 ppm
SPECIFICATION
| ITEM | DESCRIPTION |
|---|---|
| Measuring Rang | 0-30 ppm |
| Measuring Accuracy | 15ppm +/-5 ppm ( IMO Resolution MEPC 107(49) |
| Set Point | 15 ppm |
| Response Time | Time Delay :0 second (Below 5 sec) |
| Alarm Contacts / Rating | Normal / Alarm contacts |
| Source of Electricity | AC 100~ 220 V |

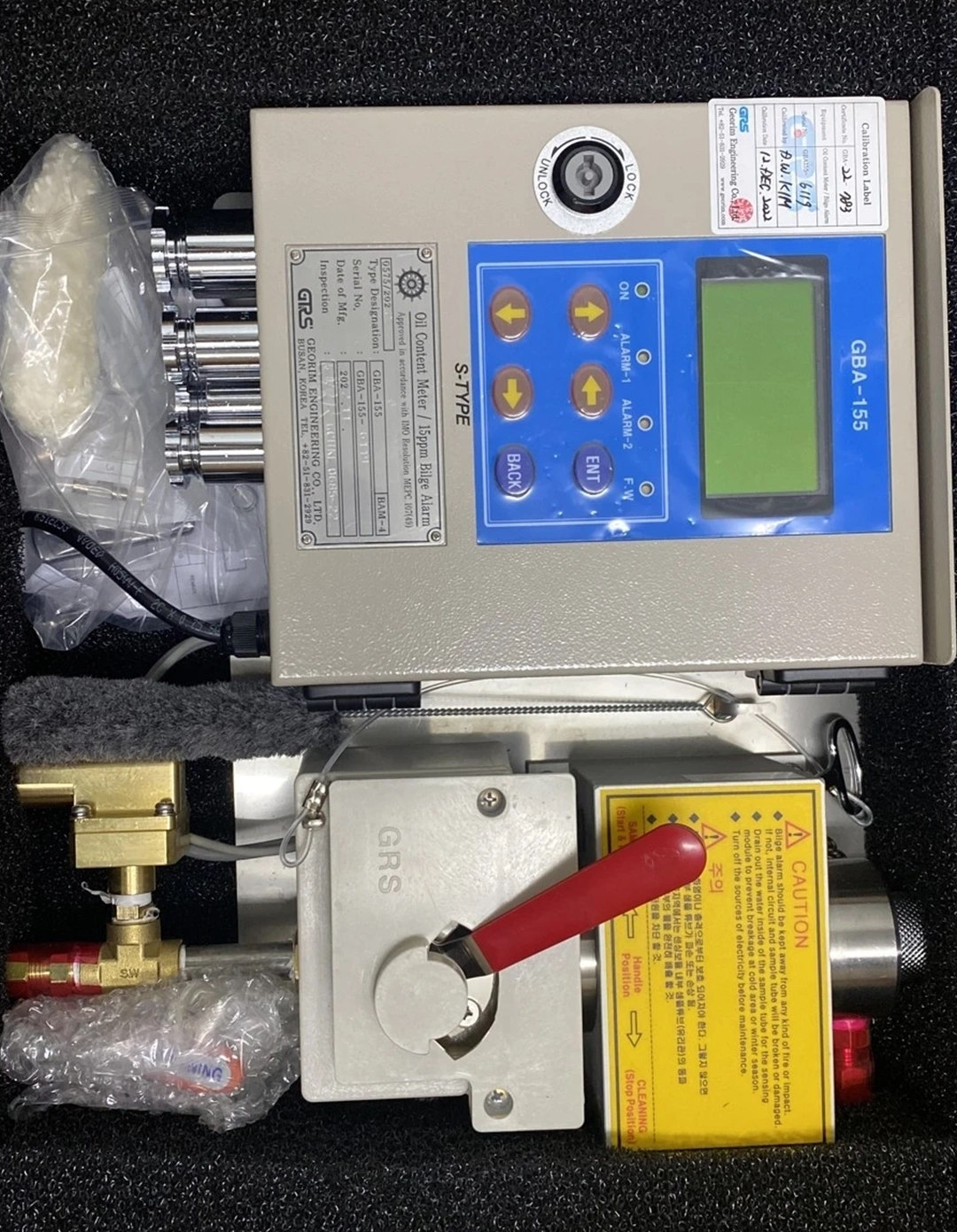

New Bilge Alarm Monitor Complete Set 15 PPM BILGE ALARM MONITOR P/N.: GBA-155 Includes 5 Years Factory Calibration Type Approval IMO MEPC 107(49)
GBA-155 MONITORS

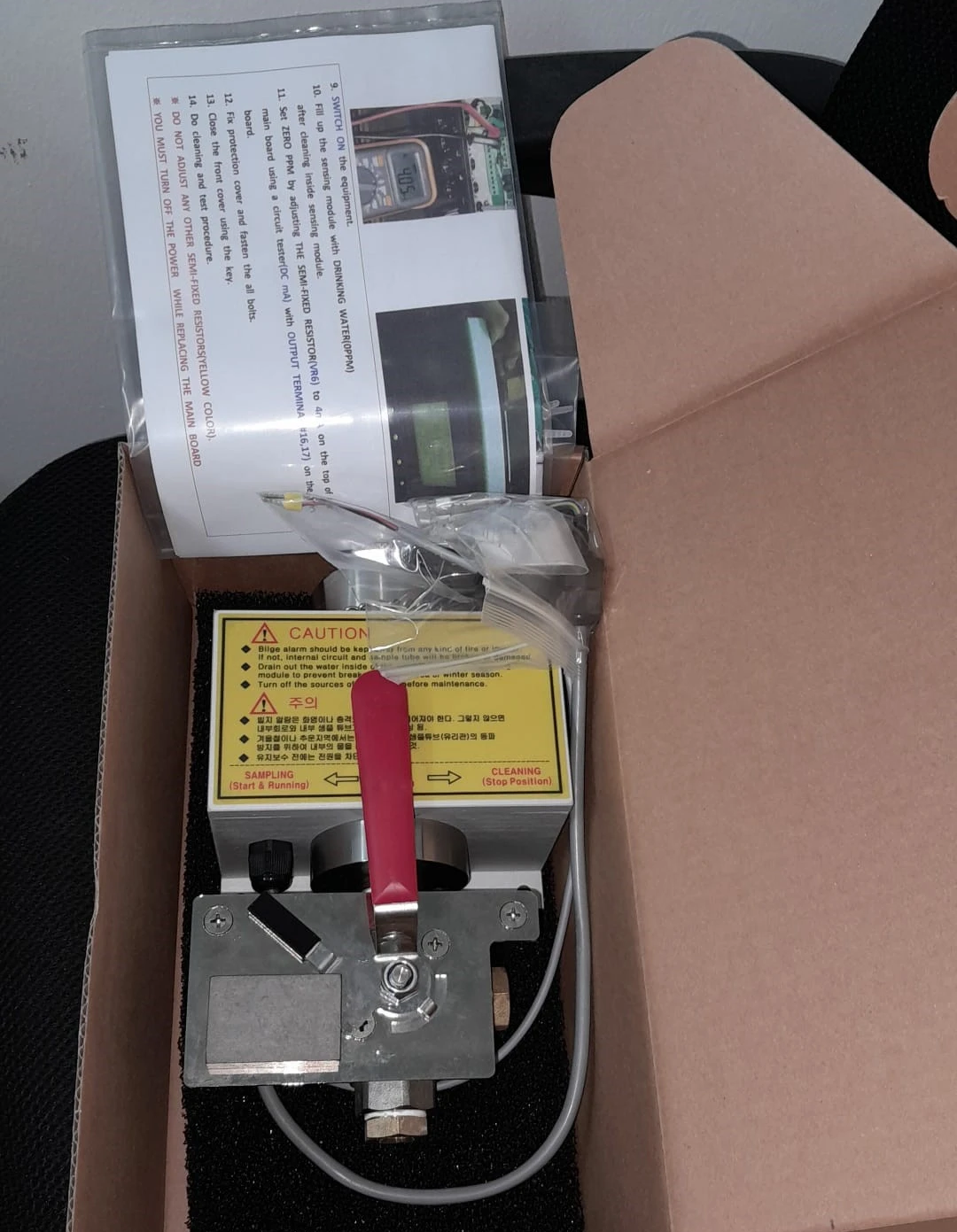

Spare Measuring Cell / Sensing Module for GBA-155 Monitors. P/N.: GBA-502 Includes 5 Years Factory Calibration Type Approval IMO MEPC 107(49)
Oil Content Meter Spares
| DESCRIPTION | DRAWING NUMBER | PART NUMBER |
|---|---|---|
| Sample Tube | BA-G-02 | GBA-507 |
| Fuse | BA-G-02 | GBA-508 |
| O-Ring for Sample Tube | BA-G-02 | GBA-509 |
| O-Ring for the Cap | BA-G-02 | GBA-510 |
| Wrench | BA-F-02 | GBA-511 |
| Brush | BA-G-02 | GBA-512 |
| Display Board with Front Cover | BA-G-02 | GBA-501 |
| Sensing Module | BA-G-02 | GBA-502 |
| Main Board | BA-G-02 | GBA-503 |
Oily Water Separators (GRS Type)
Complying to IMO MEPC 107(49)
| MODEL | CAPACITY |
|---|---|
| GRS-10EB | 1.0 m3/HR |
| GRS-20EB | 2.0 m3/HR |
| GRS-25EB | 2.5 m3/HR |
| GRS-50 EB | 5.0 m3/HR |
| GRS-100EB | 10.0 m3/HR |
Oily Water Separators (UST Type)
Complying to MEPC 60(33) Regulations.
| MODEL | CAPACITY |
|---|---|
| GRS-02EB | 0.2 m3/HR |
| GRS-03EB | 0.3 m3/HR |
| GRS-05EB | 0.5 m3/HR |
Oily Water Separator Spares
| DESCRIPTION | DRAWING NUMBER | PART NUMBERS |
|---|---|---|
| Sheet Packing (P.S.U) | SP-10BGPH-03 | 9 |
| Sheet Packing (E.T.U) | SP-10BGPH-03 | 21 |
| Handhole Packing | SP-10BGPH-03 | 22 |

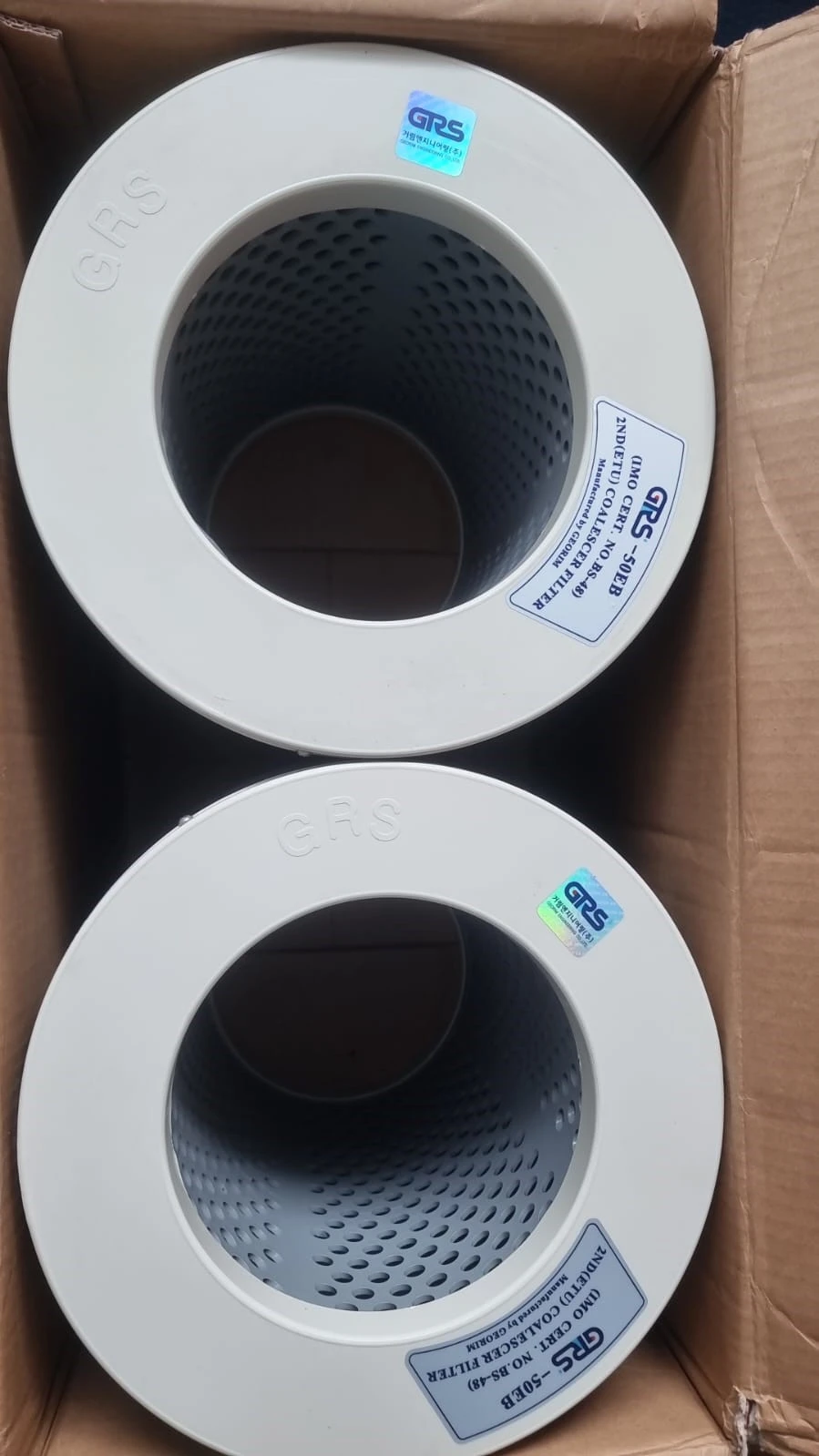

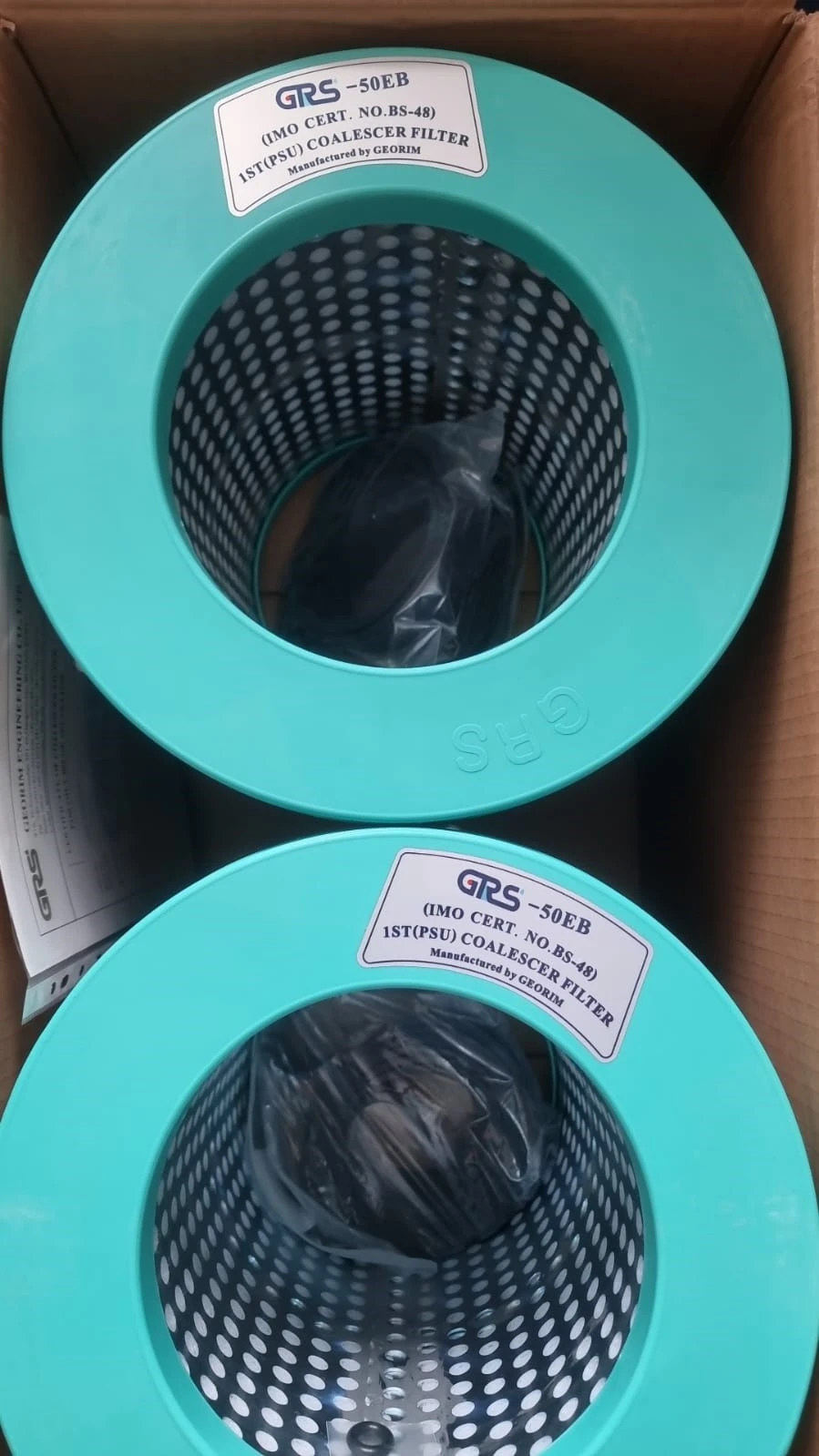

| Coalescer Filter (P.S.U) | SP-10BGPH-03 | 19 |
| Coalescer Filter (E.T.U) | SP-10BGPH-03 | 20 |
Oily Water Separators (POS Type)
Complying to MEPC60(33) Regulations.
- Coalescer Filters
- Bilge Pump (Piston Type)
- Sludge Pump (Single Screw Pump / monotype)
- Hydrophore Unit (GRH Series)
- Sewage Treatment Equipment
Guidelines : *MEPC 107(49)*
"4.2.11 The validity of calibration certificates should be checked at IOPP annual/intermediate/renewal surveys. The accuracy of 15 ppm bilge alarms is to be checked by calibration and testing of the equipment conducted by a manufacturer or persons authorized by the manufacturer and should be done at intervals not exceeding five years or within the term specified in the manufacturer's instructions, whichever is shorter.
Alternatively the unit may be replaced by a calibrated 15 ppm bilge alarm.
The calibration certificate for the 15 ppm bilge alarm, certifying the date of the last calibration check, should be retained on board for inspection purposes.
The accuracy checks can only be done by the manufactureror persons authorized by the manufacturer." *MARPOL Annex I - Chap.2-Reg.10
1. An International Oil Pollution Prevention Certificate shall be issued for a period specified by the Administration, which shall not exceed five years.
