Smart ODME
The Smart ODME from Rivertrace is a system that monitor, record, and control the slop water and ballast discharge according to the requirements in the MEPC.108(49) for tankers.
Advantages;
- Biofuel Approved

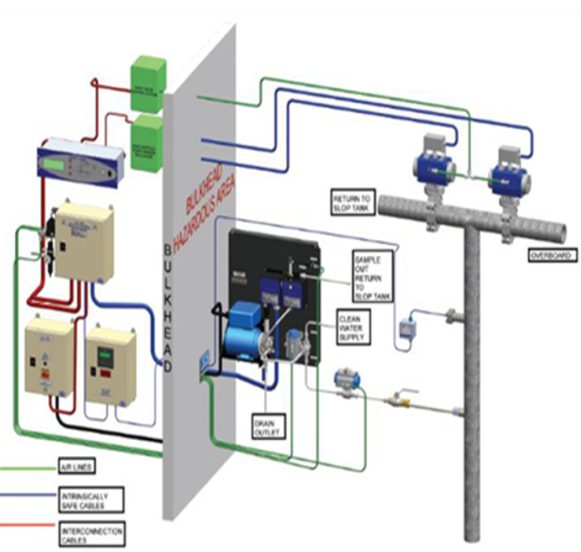

- Minimal bulkhead penetration

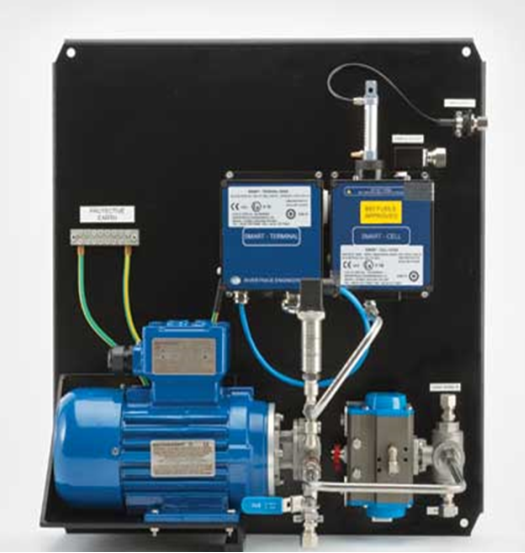

- Paddle flow meter for simple installation
- Easy installation
Automatic Clean and Self-test Mode
The Smart ODME has the following features that benefits you:
- Automatic clean water calibration
- Self-test mode for all the components

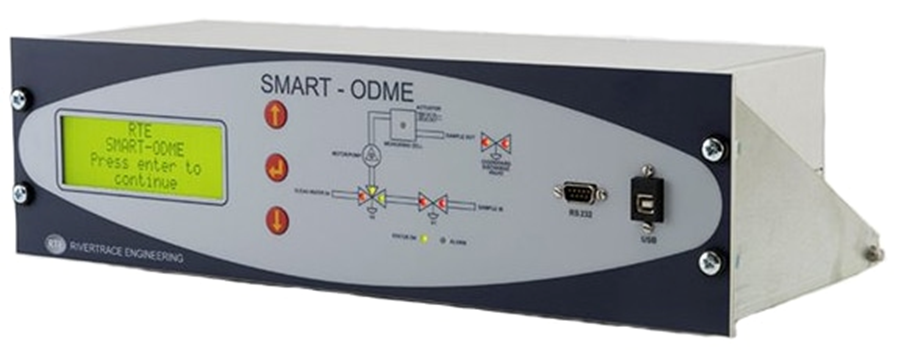

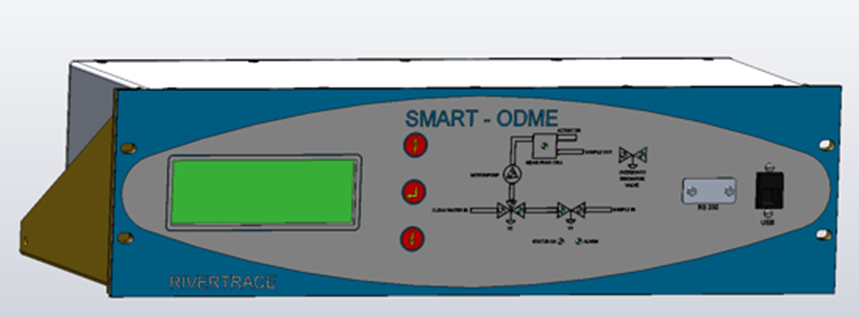

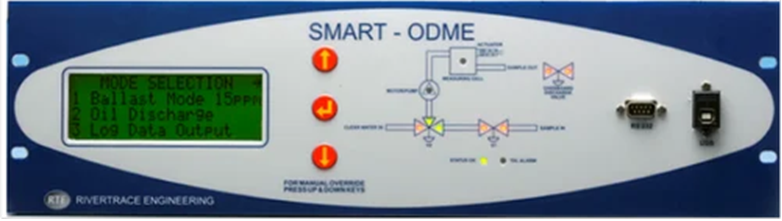

- 3-Button interface for easy operation
- Data retrieval via LCD display or download to PC using Hyperterminal or Rivertrace IMOL or any other downloader program
- Approvals: MEPC 108 (49) – DNV GL, GL + USCG, ABS, CCS, NKK, BV, and Russian Register MEPC 240(65) – DNV GLClean Ballast Water Discharge.
Easy Operation, Calibration and Maintenanc
You can purchase a replacement measuring cell, which is calibrated and easily can be changed on board of the vessel. Moreover, calibration check kits make it possible to demonstrate that the monitor is within factory calibration to PSC Surveyors. Calibration verification can only be done by authorized Service Agents.
The Smart ODME incorporates a ‘simulation mode’ to aid system demonstration to PSC surveyors. This is designed for ease of retrofitting, operation, installation, and maintenance.
Applications of the ODME includes:
- Slop Water Discharge
- Tank Wash Water Discharge
- Clean Ballast Water Discharge.
Specification
| MEASUREMENT | |
|---|---|
| Oil types: | As Per MEPC 108(49) + MEPC 240(65) requirements |
| Clean water calibration: | Automatic |
| Oil measurement range: | 0 – 1000 ppm all types |
| Resolution: | 1 ppm |
| Accuracy oil + solids: | As Per MEPC 108(49) requirements |
| DATA STORAGE AND RETRIEVAL | |
|---|---|
| Data retrieval: | via LCD display or download to PC using HyperTerminal or Rivertrace IMO Log downloader programme |
| ENVIRONMENTAL & SAMPLE | |
|---|---|
| Sample Pressure Range | 0.1bar to 5bar |
| Sample Flow Rate | 4Lpm to 5Lpm |
| Sample Temperature | 1⁰C to 40⁰C |
| Ambient Temp Range | -20⁰C to 50⁰C |
| Hazardous Area | VPC is Group II Zone 1G IIB T4 |
| SYSTEM AND SUPPLY | |
|---|---|
| Supply voltage | 115 / 230V ac, 50 – 60Hz (Switchable) |
| Zener Barrier/Computer Module: | 115 / 230V ac, 50 – 60Hz (Switchable) |
| Motor: | 380-440V ac, 50-60Hz, 3 phase, 250W |
| Supply voltage Consumption: | < 50 VA Single Phase |
| Approvals: | MEPC 108 (49) – DNV, USCG, CCS and NKK. MEPC 240(65) – DNV, CCS and NKK |
This system may be installed in line with any new and existing IMO MEPC 60(33) and 107(49) approved monitors.
